3D Game 6 - 物理系统与碰撞

3D-Game-Programming&Design SYSU-Course
Word count: 2.7k Reading time: 14 min
2019-10-18 calculating Share

It was awful tasting medicine, but I guess the patient needed it. Sometimes life hits you in the head with a brick. Don’t lose faith

— Steve Jobs, Stanford Report, June 14, 2005

物理系统与碰撞

物理引擎

作用： 物理引擎（Physics Engine）是一个软件组件，它将游戏世界对象赋予现实世界物理属性（重量、形状等），并抽象为刚体（Rigid）模型（也包括滑轮、绳索等），使得游戏物体在力的作用下，仿真现实世界的运动及其之间的碰撞过程。即在牛顿经典力学模型基础之上，通过简单的 API 计算游戏物体的运动、旋转和碰撞，现实的运动与碰撞的效果。

实现： 随着技术的进步，作为典型密集计算场景，物理引擎逐步形成了两大流派，分别对应以 NVIDIA 为代表的 PhysX 和 以 Intel +AMD 为代表的 Havok 两大平台。

作业与练习

改进飞碟游戏

技术要求

  • 按 adapter模式 修改飞碟游戏
  • 使它同时支持物理运动与运动学（变换）运动

游戏说明

游戏内容

一个简单的鼠标打飞碟（Hit UFO）游戏

游戏规则与设定

  1. 游戏有 4 个 round，每个 round 都包括10 次 trial；
  2. 每个 trial 的飞碟的色彩、大小、发射位置、速度、角度、同时出现的个数都可能不同。它们由该 round 的 ruler 控制；
  3. 每个 trial 的飞碟有随机性，总体难度随 round 上升；
  4. 鼠标点中得分，得分规则按色彩、大小、速度不同计算，规则可自由设定。

完成情况

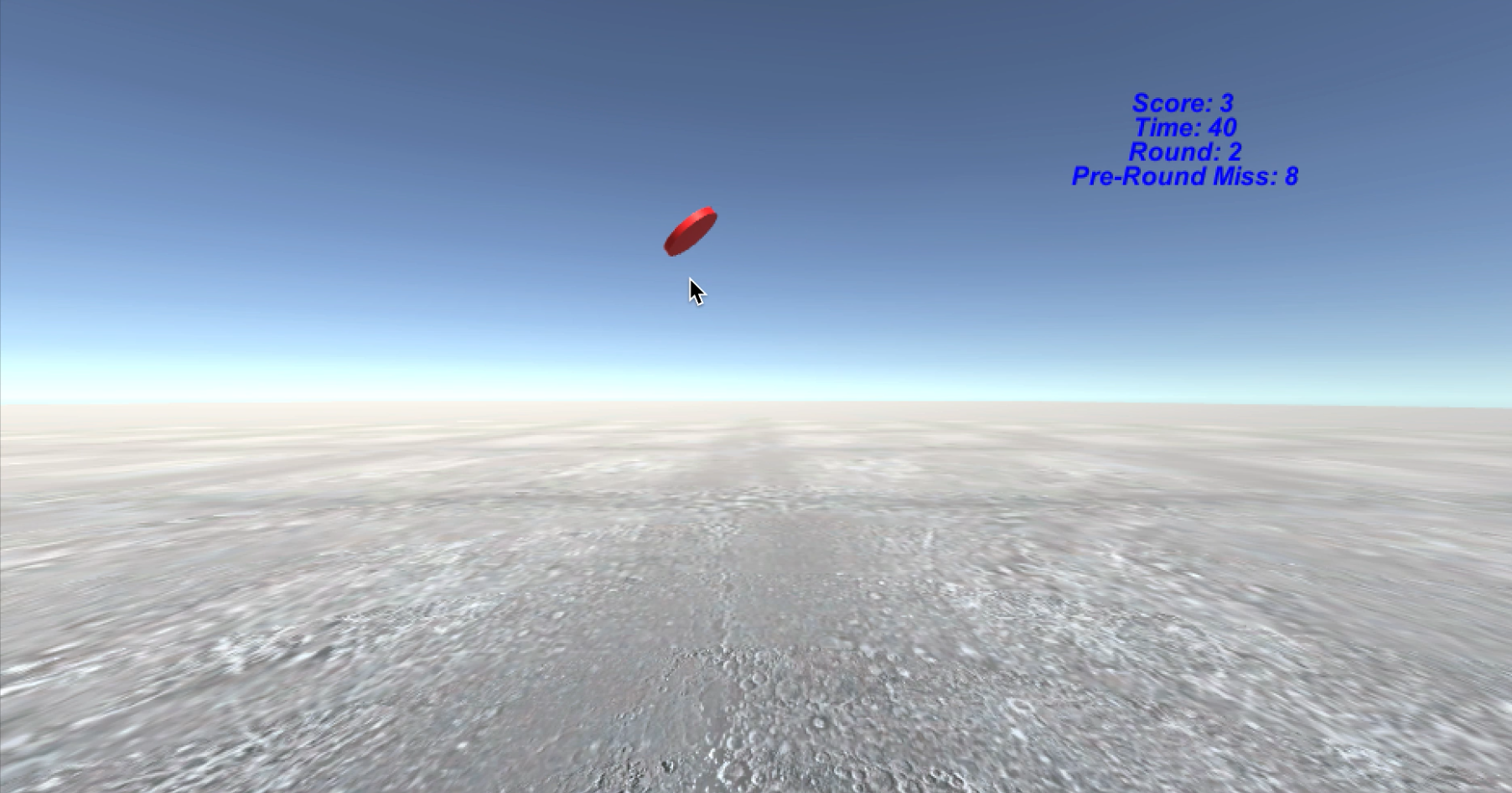

游戏界面如下：

项目设计

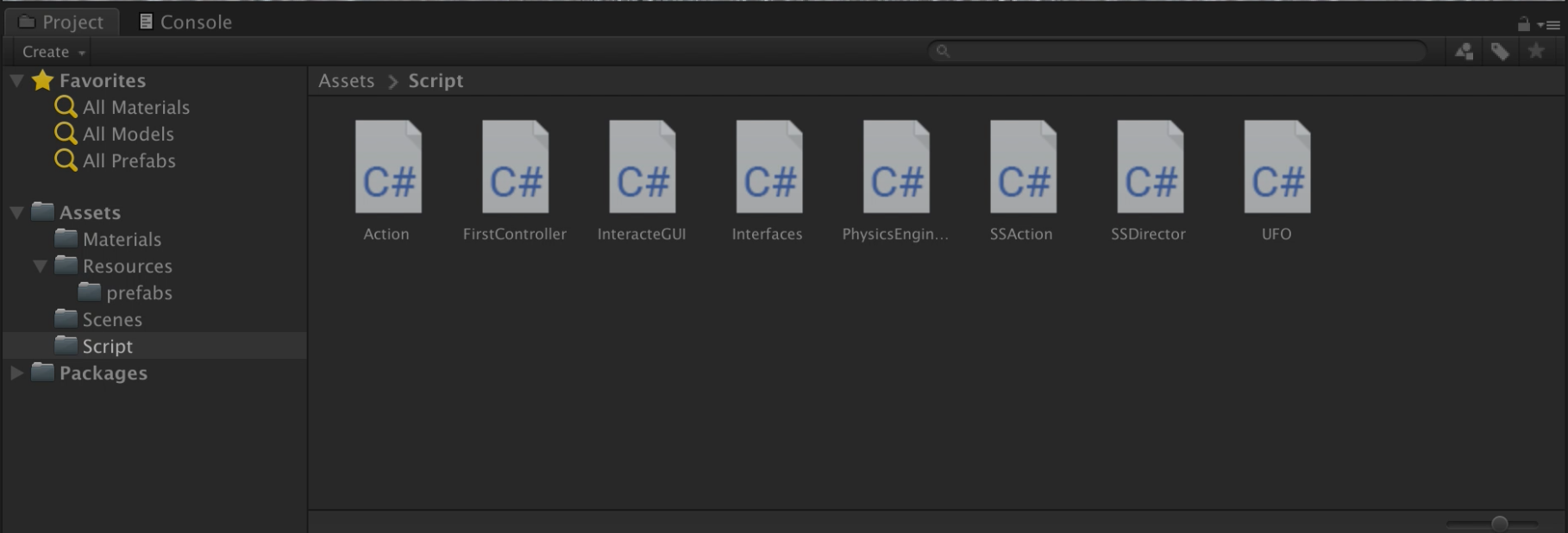

首先创建需要的游戏元素，如飞碟的预制、Terrain等，关于代码编写，首先是继承上一次项目“HitUFO-动作分离版”的成果，实现部分的代码复用，项目的文件结构如下：

优化了上一次的一个逻辑漏洞，最初把 Hit 的调用放在了 InteracteGUI 的 OnGUI 中，实际上根据逻辑，应该保留在 FirstController 中，否则会出现一个 bug，当点击到一个 UFO 时可能会计算多次得分，就此做了改动，消除该 bug，如下：

1
2
3
4
5
6
7
8
9
10
// FirstController.cs: void Update ()
//  homework6 改进
if (state)
{
  if (Input.GetButtonDown("Fire1"))
  {
    Vector3 pos = Input.mousePosition;
    Hit(pos);
  }
}

新增了每个 round 后 miss 的 UFO 数目的统计，并可以在 GUI 上显示出来。

新增了PhysicsEngineAction.cs，和 Action.cs 差不多，刻画了UFO的动作，但实现了运动对象的实例化。

PhysicsEngineAction.cs：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class PhysicsEngineAction : SSActionManager, SSActionCallback, PhysicsEngineManager
{
    //  EventType
    public SSActionEventType comp = SSActionEventType.Completed;
    //  UFO 计数器
    int MoveUfoCount = 0;
    //  UFO 的运动
    public void UfoMove(UFO ufo)
    {
        MoveUfoCount++;
        comp = SSActionEventType.Started;
        CCPhysicsEngine action = CCPhysicsEngine.getAction(ufo.speed);
        addAction(ufo.gameObject, action, this);
    }
    //  确保结束
    public bool IsAllFinished()
    {
        if (MoveUfoCount == 0)
            return true;
        else
            return false;
    }
    //  SSActionCallback
    public void SSActionCallback(SSAction source)
    {
        MoveUfoCount--;
        comp = SSActionEventType.Completed;
        source.gameObject.SetActive(false);
    }
}

其他部分继承了上次项目的代码，仅有稍微改动，具体如下：

SSDirector.cs：实现动作基类。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class SSDirector : System.Object {
    //  singltion instance
    private static SSDirector _instance;

    public ISceneController currentScenceController { get; set; }
    public bool running { get; set; }
    //  get instance anytime anywhere!
    public static SSDirector getInstance()
    {
        if (_instance == null)
        {
            _instance = new SSDirector();
        }
        return _instance;
    }

    public int getFPS()
    {
        return Application.targetFrameRate;
    }

    public void setFPS(int fps)
    {
        Application.targetFrameRate = fps;
    }
}

SSAction.cs：实现SSAction、CCMoveToAction和SSActionManager类，增加了CCPhysicsEngine类。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Interfaces;

// SSAction\CCMoveToAction\SSActionManager
// ppt-04、05

public class SSAction : ScriptableObject {

    public bool enable = true;
    public bool destroy = false;

    public GameObject gameObject;
    public Transform transform;
    public SSActionCallback CallBack;

    //
    public virtual void Start()
    {
        throw new System.NotImplementedException();
    }

    //
    public virtual void Update()
    {
        throw new System.NotImplementedException();
    }
}

public class CCMoveToAction : SSAction
{
    public float speedX;
    public float speedY = 0;

    private CCMoveToAction() { }
    public static CCMoveToAction getAction(float speed)
    {
        CCMoveToAction action = CreateInstance<CCMoveToAction>();
        action.speedX = speed;
        return action;
    }

    public override void Update()
    {
        //  抛物线运动，参照hw3
        this.transform.position += new Vector3(speedX * Time.deltaTime, -speedY * Time.deltaTime + (float)-0.5 * 10 * Time.deltaTime * Time.deltaTime, 0);
        speedY += 10 * Time.deltaTime;
        //  落地则摧毁
        if (transform.position.y <= 1)
        {
            destroy = true;
            CallBack.SSActionCallback(this);
        }
    }

    public override void Start()
    {
    }
}

public class SSActionManager : MonoBehaviour
{
    private Dictionary<int, SSAction> actions = new Dictionary<int, SSAction>();
    private List<SSAction> waitingToAdd = new List<SSAction>();
    private List<int> watingToDelete = new List<int>();

    protected void Update()
    {
        foreach (SSAction ac in waitingToAdd)
        {
            actions[ac.GetInstanceID()] = ac;
        }
        waitingToAdd.Clear();

        foreach (KeyValuePair<int, SSAction> kv in actions)
        {
            SSAction ac = kv.Value;
            if (ac.destroy)
            {
                watingToDelete.Add(ac.GetInstanceID());
            }
            else if (ac.enable)
            {
                ac.Update();
            }
        }

        foreach (int key in watingToDelete)
        {
            SSAction ac = actions[key];
            actions.Remove(key);
            DestroyObject(ac);
        }
        watingToDelete.Clear();
    }

    public void addAction(GameObject gameObject, SSAction action, SSActionCallback ICallBack)
    {
        action.gameObject = gameObject;
        action.transform = gameObject.transform;
        action.CallBack = ICallBack;
        waitingToAdd.Add(action);
        action.Start();
    }
}

//  new class for homework6
public class CCPhysicsEngine : SSAction
{
    public float speedX;
    public override void Start ()
    {
        if (!this.gameObject.GetComponent<Rigidbody>())
        {
            this.gameObject.AddComponent<Rigidbody>();
        }
        //  init Physics Engine
        this.gameObject.GetComponent<Rigidbody>().AddForce(Vector3.up * 9.8f * 0.6f, ForceMode.Acceleration);
        this.gameObject.GetComponent<Rigidbody>().AddForce(new Vector3(speedX, 0, 0), ForceMode.VelocityChange);
    }

    public static CCPhysicsEngine getAction(float speedX)
    {
        //  use speedX
        CCPhysicsEngine action = CreateInstance<CCPhysicsEngine>();
        action.speedX = speedX;
        return action;
    }

    override public void Update ()
    {
        if (transform.position.y <= 3)
        {
            //  move Rigidbody
            Destroy(this.gameObject.GetComponent<Rigidbody>());
            destroy = true;
            CallBack.SSActionCallback(this);
        }
    }

    private CCPhysicsEngine()
    {
    }
}

Action.cs：刻画了UFO的动作，上个版本完全由它负责动作管理。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class Action : SSActionManager, SSActionCallback
{
    //  EventType
    public SSActionEventType comp = SSActionEventType.Completed;
    //  UFO 计数器
    int MoveUfoCount = 0;
    //  UFO 的运动
    public void UfoMove(UFO ufo)
    {
        MoveUfoCount++;
        comp = SSActionEventType.Started;
        CCMoveToAction action = CCMoveToAction.getAction(ufo.speed);
        addAction(ufo.gameObject, action, this);
    }
    //  确保结束
    public bool IsAllFinished()
    {
        if (MoveUfoCount == 0)
            return true;
        else
            return false;
    }
    //  SSActionCallback
    public void SSActionCallback(SSAction source)
    {
        MoveUfoCount--;
        comp = SSActionEventType.Completed;
        source.gameObject.SetActive(false);
    }
}

FirstController.cs：场记，该脚本需添加到 Empty 物体上，实现了游戏的开始、进行、结束和点击事件。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
public class FirstController : MonoBehaviour, ISceneController, UserAction
{
    int score = 0;
    int miss = 0;
    int ufoNum = 0;
    int hitNum =0;
    //  游戏有 4 个 round，每个 round 都包括 10 次 trial
    int round = 1;
    int trial = 0;
    //  计数器
    int updateCount = 0;
    bool state = false; //  1-playing

    public bool PhysicEngineFlag = false;
    public bool PhysicEngineState = false;

    private PhysicsEngineManager action;
    private UFOFactory factory;

    void Awake()
    {
        //  GetComponent 需在外添加组件
        action = GetComponent<PhysicsEngineManager>();
        SSDirector director = SSDirector.getInstance();
        director.setFPS(60);
        director.currentScenceController = this;
        factory = UFOFactory.factory;
        GenGameObjects();
    }

    public void LoadResources()
    {
        PhysicEngineState = PhysicEngineFlag;
        if (PhysicEngineFlag)
        {
            action = this.gameObject.AddComponent<PhysicsEngineAction>() as PhysicsEngineManager;
        }
        else
        {
            action = this.gameObject.AddComponent<Action>() as PhysicsEngineManager;
        }
    }

    public void GenGameObjects()
    {

    }

    public int GetRound()
    {
        return round;
    }

    public int GetScore()
    {
        return score;
    }

    public int GetMiss()
    {
        return miss;
    }

    void Start ()
    {

    }

    void Update ()
    {
        if (state)
        {
            updateCount++;
            if (updateCount >= 150)
            {
                if(factory == null)
                {
                    return;
                }
                trial++;
                // Debug.Log(round);
                UFO ufoOfThisRound = factory.GetUFO(round);
                action.UfoMove(ufoOfThisRound);
                ufoNum++;
                //  每个 round 都包括 10 次 trial
                if (trial == 10)
                {
                    round++;
                    trial = 0;
                    miss = ufoNum - hitNum;
                }
                updateCount = 0;
            }
        }
        //  homework6 改进
        if (state)
        {
            if (Input.GetButtonDown("Fire1"))
            {
                Vector3 pos = Input.mousePosition;
                Hit(pos);
            }
        }
	}

    public void Hit(Vector3 pos)
    {
        Ray ray = Camera.main.ScreenPointToRay(pos);
        RaycastHit[] raycastHits;
        raycastHits = Physics.RaycastAll(ray);
        for (int i = 0; i < raycastHits.Length; i++)
        {
            RaycastHit hit = raycastHits[i];
            if (hit.collider.gameObject.GetComponent<UFO>() != null)
            {
                hitNum++;
                //  颜色不同，得分不同
                Color c = hit.collider.gameObject.GetComponent<Renderer>().material.color;
                // Debug.Log("score:"+score+"  color:"+c);
                // Debug.Log("hit:" + hit.collider.gameObject + " stacktrace: " + new System.Exception());
                if (c == Color.red)
                    score += 1;
                if (c == Color.yellow)
                    score += 2;
                if (c == Color.black)
                    score += 3;
                //  根据 round 可以加分
                // if (round > 2)
                //     score += 1;
                hit.collider.gameObject.transform.position = new Vector3(0, -100, 0);
            }
        }
    }

    public bool GameFinish()
    {
        if (round > 4 && action.IsAllFinished())
        {
            if (PhysicEngineState)
            {
                Destroy(this.gameObject.GetComponent<PhysicsEngineAction>());
            }
            else
            {
                Destroy(this.gameObject.GetComponent<Action>());
            }
            factory.GetInSide();
            return true;
        }
        return false;
    }

    public void Restart()
    {
        score = 0;
        round = 1;
        state = true;
    }
}

UFO.cs：采用了工厂模式来实现UFO的生产以及复用。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
//  UFO 基本属性
public class UFO : MonoBehaviour
{
    public float speed
    {
        get;
        set;
    }
    public Color color
    {
        get { return gameObject.GetComponent<Renderer>().material.color; }
        set { gameObject.GetComponent<Renderer>().material.color = value; }
    }
    public Vector3 StartPoint
    {
        get { return gameObject.transform.position; }
        set { gameObject.transform.position = value; }
    }
    public Vector3 Direction
    {
        get { return Direction; }
        set { gameObject.transform.Rotate(value); }
    }
}

//  UFO 工厂模式
public class UFOFactory
{
    //  init
    public static UFOFactory factory = new UFOFactory();
    public GameObject ufotemp;
    //  outside of UFOFactory
    private Dictionary<int, UFO> outUFO = new Dictionary<int, UFO>();
    //  inside of  UFOFactory
    private List<UFO> inUFO = new List<UFO>();

    private UFOFactory()
    {
        ufotemp = Object.Instantiate(Resources.Load<GameObject>("Prefabs/UFO"));
        //  给 UFO 添加上组件
        ufotemp.AddComponent<UFO>();
        ufotemp.SetActive(false);
    }

    //  根据 round 值，拿到对应的 UFO
    public UFO GetUFO(int round)
    {
        //  round: 1, 2, 3, 4
        int ufoType;    //  0~4, easy~hard
        float dire;
        GetInSide();
        GameObject objectTemp = null;
        UFO ufo;
        //  从 UFOFactory 中，拿出一个 UFO
        if (inUFO.Count > 0)
        {
            objectTemp = inUFO[0].gameObject;
            inUFO.Remove(inUFO[0]);
            objectTemp.SetActive(true);
            ufo = objectTemp.AddComponent<UFO>();
        }
        else
        {
            objectTemp = Object.Instantiate(ufotemp, Vector3.zero, Quaternion.identity);
            objectTemp.SetActive(true);
            ufo = objectTemp.AddComponent<UFO>();
        }
        //  round -> UFO Type
        if (round == 1)
        {
            ufoType = Random.Range(0, 2);   //  0,1
        }
        else if (round == 2)
        {
            ufoType = Random.Range(0, 3);   //  0,1,2
        }
        else if (round == 3)
        {
            ufoType = Random.Range(1, 4);   //  1,2,3
        }
        else
        {
            ufoType = Random.Range(2, 5);   //  2,3,4
        }
        //  UFO Type -> UFO
        switch (ufoType)
        {
            case 0:
                {
                    ufo.color = Color.red;
                    ufo.speed = Random.Range(20, 30);
                    ufo.StartPoint = new Vector3(Random.Range(-120, -90), Random.Range(30, 90), Random.Range(50, 70));
                    break;
                }
            case 1:
                {
                    ufo.color = Color.yellow;
                    ufo.speed = -Random.Range(20, 30);
                    ufo.StartPoint = new Vector3(Random.Range(90, 120), Random.Range(40, 80), Random.Range(40, 60));
                    break;
                }
            case 2:
                {
                    ufo.color = Color.black;
                    ufo.speed = Random.Range(25, 35);
                    ufo.StartPoint = new Vector3(Random.Range(-120, -190), Random.Range(30, 90), Random.Range(50, 70));
                    break;
                }
            case 3:
                {
                    ufo.color = Color.red;
                    ufo.speed = -Random.Range(30, 40);
                    ufo.StartPoint = new Vector3(Random.Range(90, 120), Random.Range(40, 80), Random.Range(40, 60));
                    break;
                }
            default:
                {
                    ufo.color = Color.red;
                    ufo.speed = Random.Range(30, 40);
                    ufo.StartPoint = new Vector3(Random.Range(-120, -190), Random.Range(30, 90), Random.Range(50, 70));
                    break;
                }
        }
        dire = UnityEngine.Random.Range(-1f, 1f) < 0 ? -1 : 1;
        ufo.Direction = new Vector3(dire, 0, 10);
        outUFO.Add(ufo.GetInstanceID(), ufo);
        ufo.name = ufo.GetInstanceID().ToString();
        return ufo;
    }

    //  放回 UFOFactory
    public void GetInSide()
    {
        foreach (UFO ufo in outUFO.Values)
        {
            if (!ufo.gameObject.activeSelf)
            {
                inUFO.Add(ufo);
                outUFO.Remove(ufo.GetInstanceID());
                return;
            }
        }
    }
}

Interfaces.cs：接口，对新的场记和新的控制器进行了链接。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
namespace Interfaces
{
    // copy from ppt
    public enum SSActionEventType : int { Started, Completed }

    public interface ISceneController
    {
        void LoadResources();
    }

    public interface UserAction
    {
        void Hit(Vector3 pos);
        int GetScore();
        int GetRound();
        int GetMiss();
        bool GameFinish();
        void Restart();
    }

    public interface PhysicsEngineManager
    {
        void UfoMove(UFO ufo);
        bool IsAllFinished();
    }

    public interface SSActionCallback
    {
        void SSActionCallback(SSAction source);
    }
}

InteracteGUI.cs：实现GUI。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
public class InteracteGUI : MonoBehaviour
{
    private int round = 1;
    private bool flag = false;
    private float slip;
    private float Now;
    UserAction user_act;
    ISceneController scene_ctrl;
    private GUIStyle Style = new GUIStyle ();

	void Start ()
    {
        //  style init
        Style.fontSize = 16;
        Style.fontStyle = FontStyle.BoldAndItalic;
        Style.normal.textColor = Color.blue;
        Style.alignment = TextAnchor.MiddleCenter;
        //  user_act scene_ctrl init
        user_act = SSDirector.getInstance().currentScenceController as UserAction;
        scene_ctrl = SSDirector.getInstance().currentScenceController as ISceneController;
        //  Time.time
        slip = Time.time;
    }

    private void OnGUI()
    {
        round = user_act.GetRound();
        if (!flag)
            slip = Time.time;
        GUI.Label(new Rect(680, 30, 100, 70), "Score: " + user_act.GetScore().ToString(), Style);
        GUI.Label(new Rect(680, 45, 100, 70), "Time: " + ((int)(Time.time - slip)).ToString(), Style);
        GUI.Label(new Rect(680, 60, 100, 70), "Round: " + round, Style);
        GUI.Label(new Rect(680, 75, 100, 70), "Pre-Round Miss: " + user_act.GetMiss(), Style);
        if (!flag)
        {
            if (GUI.Button(new Rect(380, 200, 140, 70), "Start"))
            {
                slip = Time.time;
                flag = true;
                user_act.Restart();
            }
        }
        if (flag)
        {
            if (round > 4)
            {
                round = 4;
                if (user_act.GameFinish())
                {
                    flag = false;
                }
            }
        }
    }
}

项目地址

代码地址：https://github.com/CUFMHeart/3D-Game-Programming-Design/tree/master/homework6/

视频地址：https://www.bilibili.com/video/av71623568/

参考资料

[1] 物理系统与碰撞_教学讲义

[2] Maunal

CATALOG
  1. 1. 物理系统与碰撞
    1. 1.1. 物理引擎
  2. 2. 作业与练习
    1. 2.1. 改进飞碟游戏
      1. 2.1.1. 技术要求
      2. 2.1.2. 游戏说明
      3. 2.1.3. 完成情况
      4. 2.1.4. 项目设计
      5. 2.1.5. 项目地址
  3. 3. 参考资料
Total : 27
2020
2019
3D-Game-Programming&Design SYSU-Course AR/MR Software-Testing LeetCode 剑指Offer
3D-Game-Programming-Design Software-Testing Programming
